Innovative Solutions
Driven to Provide Value to Your System

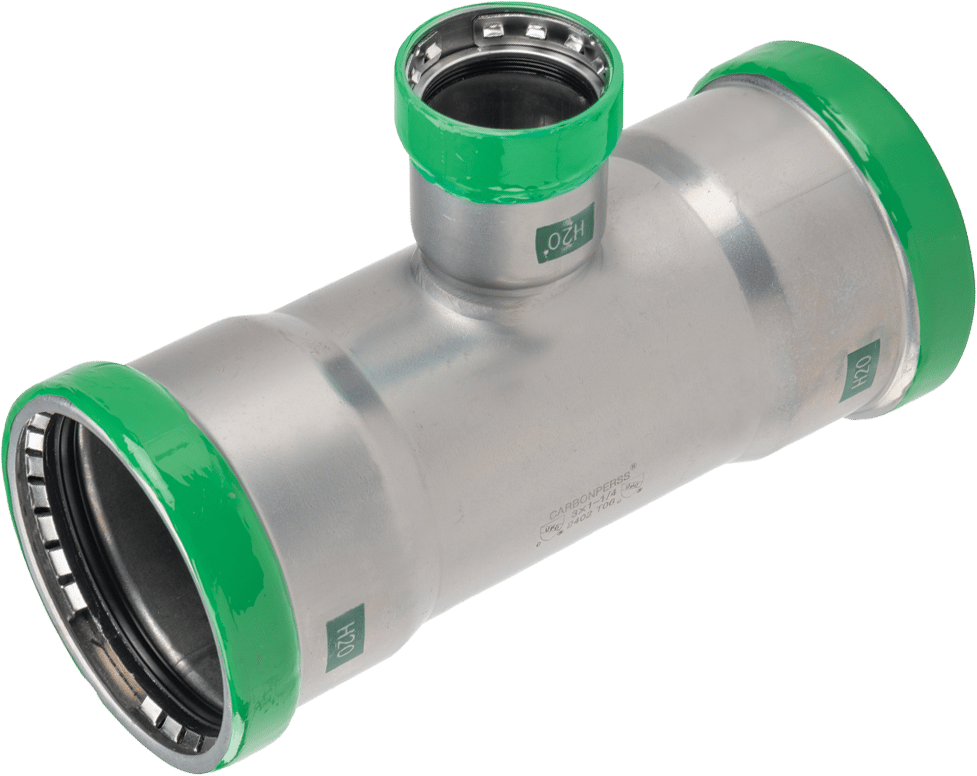

Large OD (2-1/2” - 4”) NEW!
Size Range: 1/2” - 4”
Temperature Range: -40°F to 300°F (-40°C to 148°C)
Working Pressure Range: From Full Vacuum to 250 psi (17.2 bar) for Water
Sealing Element Color: Black

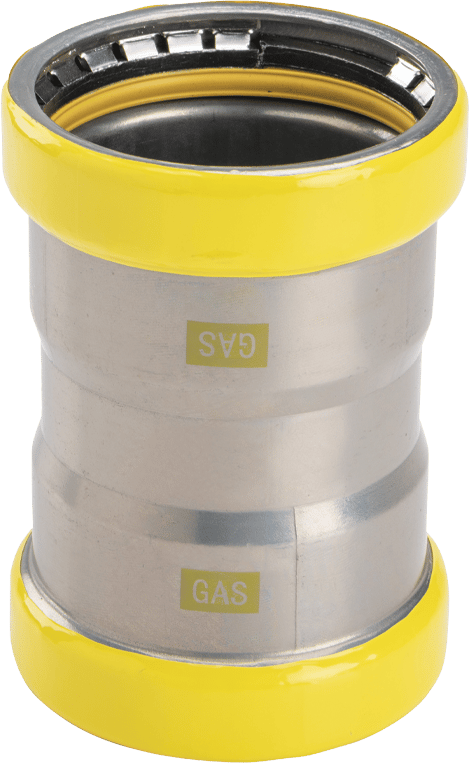

Size Range: 1/2” - 4”
Temperature Range: -40°F to 200°F (-40°C to 93°C)
Working Pressure Range: From Full Vacuum to 125 psi (8.6 bar) for Gas
Sealing Element Color: Yellow
FKM see below...

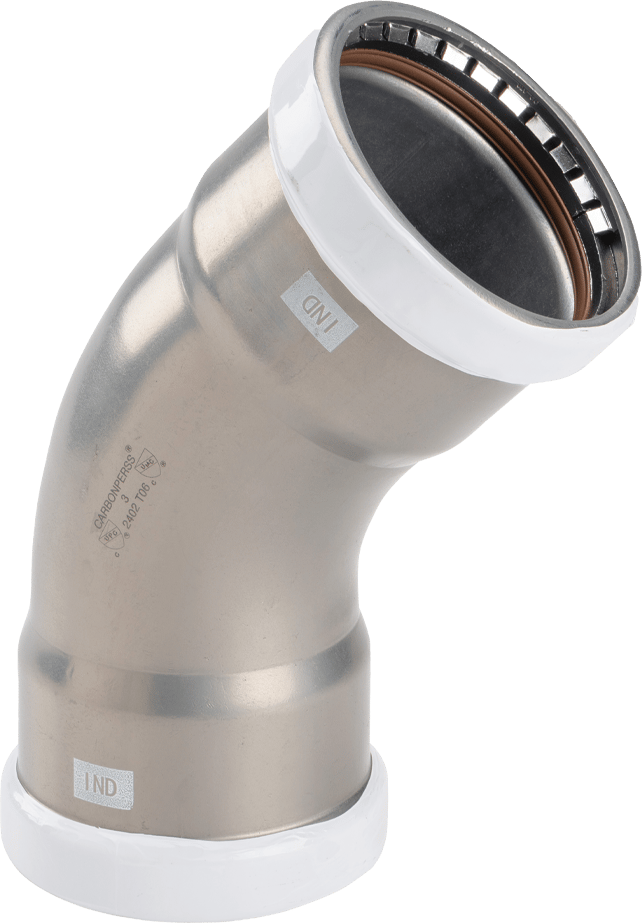

FKM Sealing Element NEW!
*
Size Range: 1/2” – 4”
Temperature Range: 14°F to 293°F (-10°C to 145°C)
Working Pressure Range: From Full Vacuum to 200 psi (13.7 bar) for Industrial
Sealing Element Color: Brown
*available upon request
HNBR
EPDM
Watch Our Brief Video
CarbonPress® Fittings
Leak Before Press Technology
Zn-Ni Plating
Approved Applications
Color-Coded Box, Bag, and Ring
Certifications, Codes, and Standards
Engineered sealing elements are designed to leak before they are pressed, giving a visual identification of a connection that has not been pressed.
Made from ASTM A420 Carbon Steel with Zn-Ni plating. ASTM A420 has excellent corrosion resistant properties.
Used in several applications including: fluids, water, gases, oil & lubricants. Some specific examples include: hydronic heating, chilled water, low-pressure steam applications, carbon dioxide, engine oil, and more.
The box, bag, and ring are color-coordinated to the sealing element for ease of receipt, identification, and safe installation for the application.
Certifications – IAPMO Z 1117 (EPDM & FKM); IAPMO/ANSI LC 4/CSA 6.32 (HNBR)
Codes & Standards – ASME B31.1 Power Piping; ASME B31.3 Process Piping; ASME B31.9 Building Service Piping; CSA B149.1 Natural Gas and Propane Installation Code; IAPMO Uniform Mechanical Code (UMC); IAPMO Uniform Plumbing Code (UPC).
Explore More CarbonPress® Benefits & Features
15-Year Limited Warranty on Fittings
IPS (Iron Pipe Size)
For use with Steel pipes conforming to ASTM A53, A106, A135, A795 (schedule 10 to 40) and black iron, epoxy coated and galvanized steel.
Grab ring deforms and grips outside diameter of pipe when pressed, securing the fitting and preventing movement during the pressing process.
Over 400 SKU's
Order CarbonPress® Today
How CarbonPress® Systems Benefit You
Streamlining Project Planning & Execution
BIM/Revit files for our press portfolio are available to download and use in the design of your systems.
Press systems are designed to provide the same quality and reliable pipe joint as other connection technologies while reducing the time to complete the joint; therefore, reducing the man-hours required for the entire project.
Innovation with Design in Mind to Save Time, Money & Labor
Training at Every Stage of the Process with Your Success in Mind
Each member of our sales & engineering team is qualified to provide job site product and installation training. This ensures that your experience with our press systems is a trouble-free experience.
Leveraging previous successful installations within a vertical market, or with an installer, helps to expedite growth of our wholesale distribution partners as we build those relationships together.
Supporting Distribution Growth Strategies Through Vertical Market Relationship Building
Click on the plus signs for more
From planning to training through to distribution, CarbonPress® provides value through innovative solutions.
Most Comprehensive
Product Offering
Merit Brass has a rich history of offering the most comprehensive flow control and piping connection technology. Our goal is to make the Merit Experience for our customers seamless by bundling a complete line of consistent, high-quality piping products, flow control devices, and piping system solutions.
Merit Brass features a full range of:
Press Products from Merit Brass
Legacy Products from Merit Brass
Get Your Connections Today
- Size Range: ½" – 2"
- Sealing Elements: EPDM (Water) & HNBR (Gas), and FKM (Industrial)*
- Operating Pressure: From Full Vacuum to 300 psi
- Temperature Range:
EPDM Fittings & Valves: -4°F to 230°F (-20°C to 110°C)
HNBR Fittings: -31°F to 248°F (-35°C to 120°C)
HNBR Valves: -13°F to 248°F (-25°C to 120°C)
FKM Fittings & Valves: -4°F to 356°F (-20°C to 180°C) - 15-Year Limited Warranty on Fittings and 5-Year Limited Warranty on Valves
- IPS (Iron Pipe Size)
- Mates with S5 & S10, 304 & 316 Stainless Steel Pipe
- Over 325 SKU's
Order StainlessPress® Today
*FKM available upon request

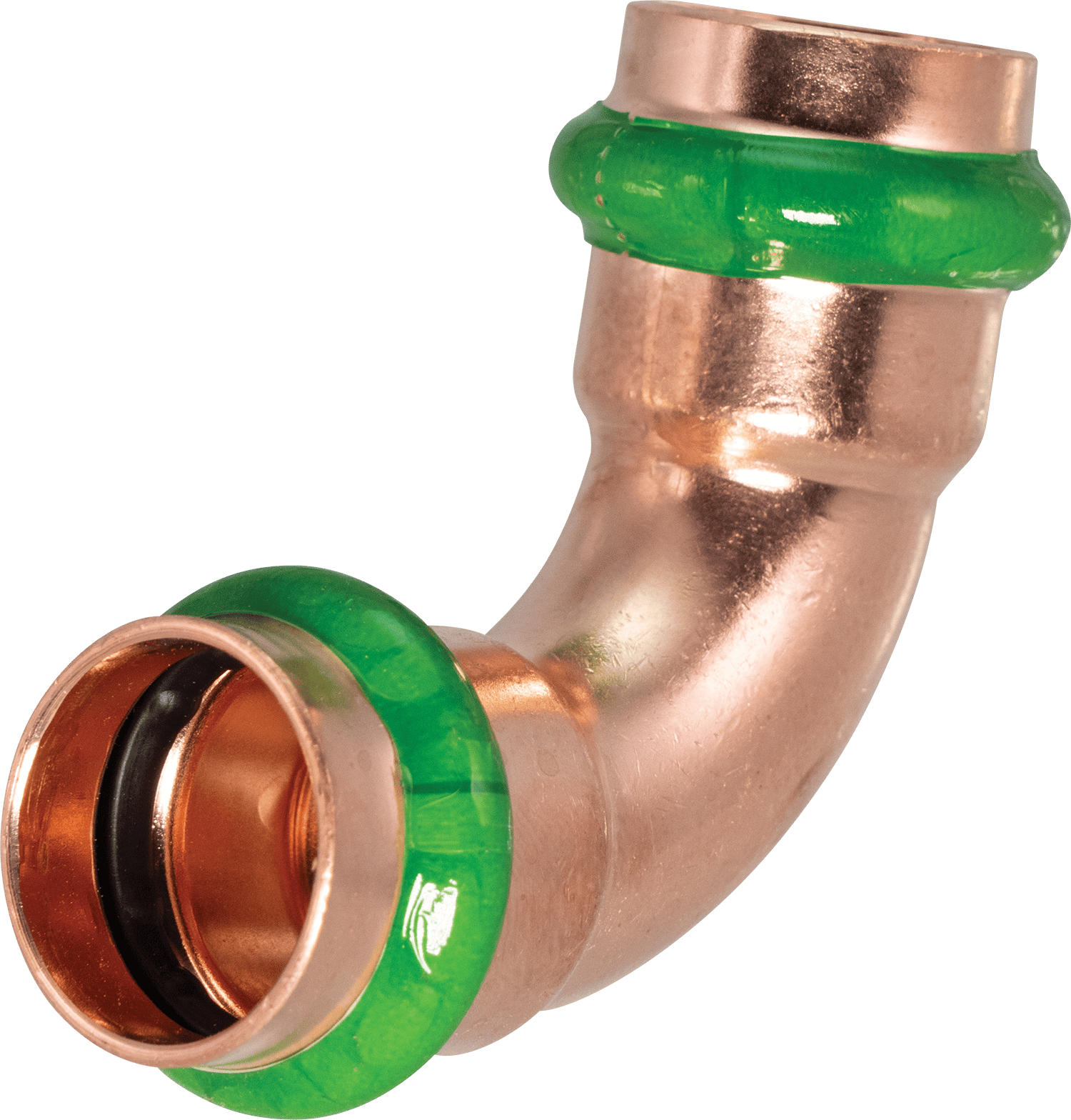

- Size Range: ½" – 4" (Fittings) and ½" – 2" (Valves)
- Sealing Elements: EPDM (Water)
- Operating Pressure: From full vacuum to 300 psi
- Temperature Range: 0°F to 250°F
(EPDM Fittings & Valves) - 50-Year Limited Warranty on Fittings and 5-Year Limited Warranty on Valves
- CTS (Copper Tube Size)
- NSF 61 on Fittings
- Over 350 SKU's
Order CopperPress® Today
DOWNLOAD OUR LINE CARD
REGISTER TO ORDER ONLINE
REQUEST A TRAINING
Order Pipe Today

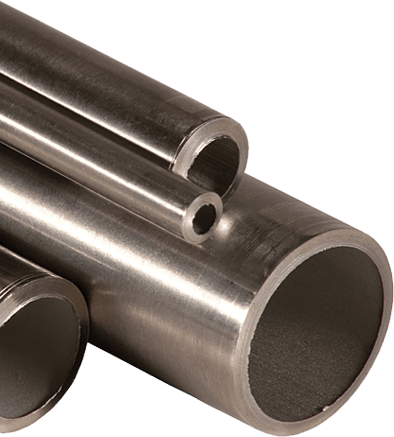

Stainless Steel Pipe
304/L & 316/L Welded
- Schedule 10 (Standard)
- Schedule 40 (Standard)
- Schedule 80 (Extra Heavy)
304/L & 316/L Seamless
- Schedule 40 (Standard)
- Schedule 80 (Extra Heavy)
Brass Pipe
- Schedule 40 (Standard)
- Schedule 80 (Extra Heavy)
- Schedule 40 (Light Annealed)
Chrome-Plated Brass Pipe
- Schedule 40 (Seamless)
Aluminum Pipe
- Schedule 40 (Seamless; Standard)
Order Pipe Nipples Today
Stainless Steel Pipe Nipples
- 304/L & 31/L
- Schedule 40 (Standard)
- Schedule 80 (Extra Heavy)
- Welded & Seamless
- Pigtails/Syphons
Brass Pipe Nipples
- Schedule 40 (Standard)
- Schedule 80 (Extra Heavy)
- Pigtails/Syphons
Chrome-Plated Brass Pipe Nipples
- Schedule 40 (Standard)
- Hospital (Special Order)
Aluminum Pipe Nipples
- Schedule 40 (Standard)
- 6061-T6
Order Fittings Today
Stainless Steel Fittings
- 150# Fittings (Non-China Available, ISO & MSS SP-114 Patterns)
- 1000# Barstock Fittings
- 3000# Fittings (Socket Weld, Threaded, and Threaded x Socket Weld)
- 6000# Fittings (Socket Weld)
- Buttweld Fittings (China & Non-China)
- Tube Fittings
Brass Pipe Fittings
- Domestic (Leaded & Lead-Free)
- Import (Leaded & Lead-Free)
- Barstock (Leaded & Lead-Free)
Chrome-Plated Brass Pipe Fittings
- Domestic (Leaded & Lead-Free)
- Import (Leaded & Lead-Free)
Forged Carbon Steel Fittings
- 2000# (Threaded)
- 3000# (Socket Weld, Threaded, and Threaded x Socket Weld)
- 6000# (Threaded)
- Outlets (Threaded, Socket Weld, and Buttweld)
CarbonPress® Fittings
- EPDM, HNBR, FKM*
*FKM available upon request
CopperPress® Fittings
- EPDM
StainlessPress® Fittings
- HNBR, EPDM, and FKM*
*FKM available upon request

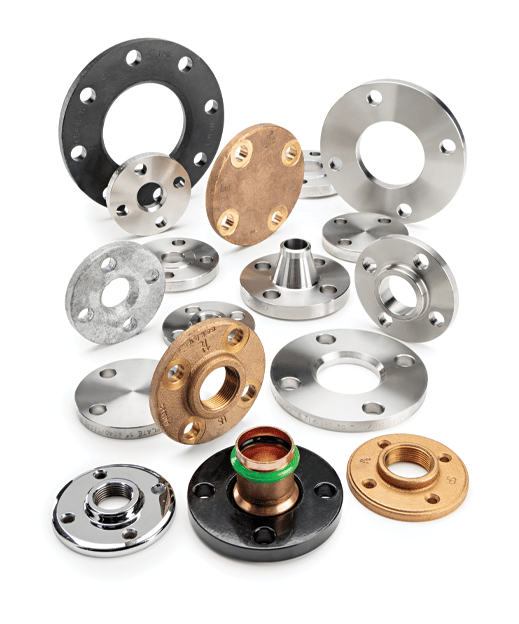

Order Flanges Today
Stainless Steel Flanges
- ANSI
- MSS
- 150 LB & 300 LB
- Weldneck, Blind, Threaded, Slip-On, Socket Weld, Lap Joint
- Plate (Tube OD Slip-On, Blind, IPS Slip-On Bevel x Square, and IPS Sip-On Square x Square)
Brass Flanges
- Domestic (Leaded & Lead-Free)
- Import (Leaded & Lead-Free)
- Class: 150, 250, and 300
Chrome-Plated Brass Pipe Flanges
- Floor
Ductile Iron Flanges
- Standard
- Galvanized
Order Valves Today
Stainless Steel Valves
“K” Series – Vietnam
- 1-Piece Ball Valve
- 2-Piece Ball Valve
- 3-Piece Ball Valve
“V” Series – Taiwan
- 1-Piece Ball Valve
- 2-Piece Ball Valve
- 3-Piece Ball Valve
- Gate Valve
- Swing Check Valve
- Wye Pattern Swing Check Valve
- Y-Strainer
Instrumentation
- Ball Valve
- Regulating Needle Valve
- Vee-Stem Needle Valve
StainlessPress®
- 2-Piece Ball Valve
Brass Valves
- 2-Piece Ball Valve (Leaded & Lead-Free)
CopperPress® Valves
- 2-Piece Ball Valve
Order Thread Tape Today
Stainless Steel PTFE Thread Tape
- UL Listed Threaded Sealant 561R
- Meets Military Specification MIL-T-27730A
- Nickel Coated
- ½” x 260”
- ¾” x 260”
